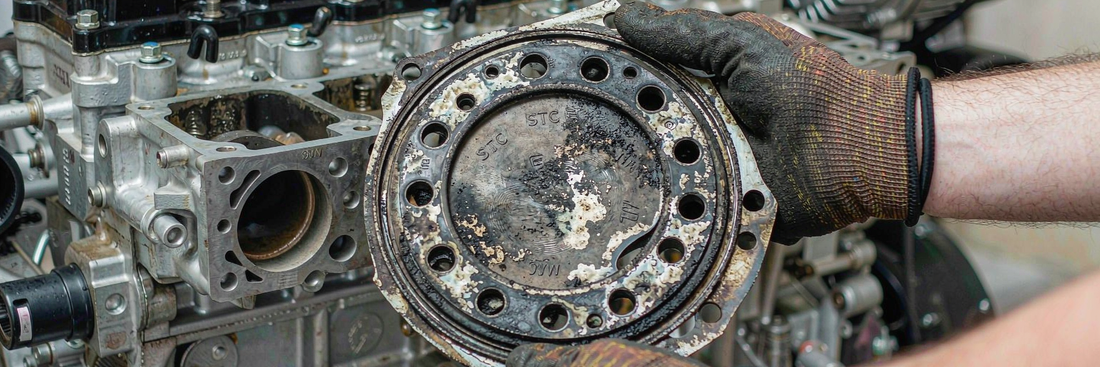

Your standby diesel barely reaches 200 hours a year. Your continuous-duty gas set runs 6,000. Both can end up with the same puddle of coolant under the skid and the same question on your desk: is the head gasket gone, and why? Head gasket failure is one of the most misdiagnosed faults on generator sets, and ordering the wrong fix means paying for the same teardown twice. This guide walks through the seven root causes we see most on diesel and gas gensets, the tests that confirm the diagnosis, and the OE part numbers you need once the verdict is in.
Quick Answer: Head gasket failure on a genset engine almost always traces back to one of seven root causes: chronic overheating, wrong or degraded coolant, detonation or pre-ignition, incorrect bolt torque or reused torque-to-yield bolts, liner protrusion out of specification, poor deck or head surface finish, and accumulated running hours. The gasket rarely dies of old age β something else kills it. Confirm the failure with a combustion leak test and a cooling system pressure test before ordering parts, and fix the root cause first. A new gasket fitted over an uncorrected overheating fault typically blows again within 500β1,000 operating hours.
Key Takeaways
- Overheating causes most repeat head gasket failures β fix the cooling fault before fitting a new gasket.
- A combustion leak test plus a 15β20 psi (1.0β1.4 bar) cooling pressure test confirms most failures in under an hour.
- Gas gensets run 50β100 Β°C (90β180 Β°F) hotter at the exhaust valve than diesels, so sealing parts wear faster.
- Torque-to-yield head bolts are single-use or two-use at most β never reuse a stretched bolt.
- Quote with the OE part number, engine model and quantity to get the correct gasket the first time.
What does a head gasket actually do on a genset engine?
The head gasket is the seal squeezed between the cylinder head and the engine block. It has three jobs at once: keep combustion pressure inside the cylinder, keep coolant in its passages, and keep oil in its galleries. Think of it as the only bouncer standing between three rooms that must never mix.
The loads are brutal. A modern heavy-duty diesel sees peak firing pressures above 150 bar (2,175 psi) on every power stroke, and the gasket's fire ring has to hold that pressure thousands of times per minute for years. On a large-bore platform like the Baudouin 12M26, each of the twelve cylinders carries its own individual head gasket (OE 330301000530), so one leaking fire ring does not force you to disturb the other eleven heads β though most shops renew the full set while the engine is open.
When the seal lets go, the failure shows up in one of three directions: combustion gas pushing into the coolant, coolant leaking into a cylinder or the oil, or an external leak down the side of the block. Each direction points at the same part but tells a different story about the root cause.
What are the warning signs of a blown head gasket?
The classic signs are coolant loss with no visible external leak, white exhaust smoke that smells sweet, oil that looks like mayonnaise under the filler cap, and a radiator or expansion tank that bubbles with the engine running. Any one of these on a genset deserves a same-day check, because the set usually fails under load β exactly when you need it most.
Match the symptom to the leak direction before you tear anything down:
| Symptom | Likely leak path | First check |
|---|---|---|
| Bubbles in expansion tank, rising pressure when hot | Combustion gas into coolant | Combustion leak (block) test at the filler neck |
| Sweet white smoke, coolant level dropping | Coolant into combustion chamber | Pressure-test cooling system at 15β20 psi (1.0β1.4 bar) |
| Milky oil on dipstick or under filler cap | Coolant into oil gallery | Oil sample; check oil cooler first β it mimics gasket failure |
| Overheating alarms under load only | Gas in coolant forming steam pockets | Rule out radiator, thermostat and water pump first |
One caution from the field: white smoke at cold start on a humid morning is often just condensation. Smoke that continues at full operating temperature is the real warning. Check the simple things first.
What are the 7 root causes of head gasket failure?
The gasket is almost never the root cause β it is the victim. Across diesel and gas gensets, these seven causes account for the overwhelming majority of repeat failures:
| Root cause | What actually happens | Typical fix before reassembly |
|---|---|---|
| 1. Chronic overheating | Head expands beyond the gasket's recovery range; fire ring loses clamp load | Repair radiator, thermostat, pump or fan drive; verify with a load test |
| 2. Wrong or degraded coolant | Cavitation erodes liner and deck; corrosion undercuts the gasket face | Flush system, refill with correct spec coolant and additives |
| 3. Detonation / pre-ignition | Pressure spikes far above the normal 150 bar (2,175 psi) hammer the fire ring | Correct timing, fuel quality and gas mixture settings |
| 4. Bolt torque errors | Reused torque-to-yield bolts or wrong sequence leave uneven clamp load | New bolts, calibrated torque wrench, OEM sequence |
| 5. Liner protrusion out of spec | Fire ring never reaches full crush; slow leak from day one | Measure protrusion with a dial gauge; shim or re-seat liners |
| 6. Poor surface finish | Scratches, warpage or rough machining give combustion gas an escape path | Check flatness with a straightedge; skim head or deck as needed |
| 7. Accumulated running hours | Heat cycles fatigue the fire ring and coatings over tens of thousands of hours | Replace at scheduled top-end overhaul, not after failure |
Duty profile decides which cause dominates. Under ISO 8528, an ESP-rated standby set runs about 200 hours per year, while a PRP-rated prime set may run unlimited hours with a 10% overload for 1 hour in every 12. On standby machines, degraded coolant and age cause most failures; on prime and continuous sets, heat-cycle fatigue and detonation move to the top of the list.
Gas engines add their own twist. A spark-ignited gas genset such as the Baudouin 6M33NG runs exhaust valve temperatures 50β100 Β°C (90β180 Β°F) higher than a comparable diesel, and lean-misfire events hit the fire ring like detonation. On gas platforms, treat the head gasket as a scheduled wear item tied to the top-end overhaul β on continuous duty of 6,000+ hours per year that interval arrives far sooner than any calendar suggests.
How do you confirm a head gasket failure before teardown?
Two workshop tests confirm most cases in under an hour, and both cost almost nothing. Run them before you quote the job.
Combustion leak test (block test). Draw air from the expansion tank through a test fluid with the engine at operating temperature. A change from blue to yellow means combustion gas β CO2 on diesels, hydrocarbons on gas engines β is entering the coolant. That is the head gasket, a cracked head, or a cracked liner. The test cannot separate those three, but it settles whether combustion gas is present at all.
Cooling system pressure test. Pump the system to 15β20 psi (1.0β1.4 bar) cold and watch the gauge for 15 minutes. A steady drop with no external drip means an internal leak. Pull the dipstick and check for rising oil level or emulsion to locate it.
Two more checks separate the gasket from its lookalikes. An oil cooler core failure also puts coolant in the oil β pressure-test the cooler before blaming the gasket. And a cracked cylinder head on high-hour gas engines can mimic every gasket symptom, so plan a crack detection check on any head that comes off a set with more than 20,000 hours.
Which head gasket part number fits your engine?
Large-bore genset engines mostly seal one cylinder per gasket, so the part number and quantity depend on both platform and cylinder count. These OE numbers come straight from the manufacturers' parts catalogues β verify fitment against your engine serial number before ordering:
| Engine platform | OE head gasket | Qty per engine | Note |
|---|---|---|---|
| Baudouin 6M11 | 13059912 | 1 | Single-piece design |
| Baudouin 6M12 | 610800040023 | 1 | Weichai platform numbering |
| Baudouin 6M16 | 612600040646 | 6 | One per cylinder |
| Baudouin 6M19 | 612700040018 | 6 | One per cylinder |
| Baudouin 6M21 | 1004329208 | 6 | One per cylinder |
| Baudouin 6M33 / 6M33NG | 330201000501 | 6 | Diesel and gas versions β confirm by serial number |
| Baudouin 12M26 | 330301000530 | 12 | One per cylinder, marine and genset |
| Baudouin 12M33 / 12M33NG | 331008000483 | 12 | Coexists with 330201000501 series β check configuration |
| Jenbacher Type 3 (J312βJ320) | 448657 | 1 per cylinder | Gas engines, per-cylinder sealing |
| Jenbacher Type 4 (J412βJ420) | 448559 | 1 per cylinder | Goetze 042.020 is the OE-brand cross reference |
| Jenbacher J420 service set | 582705 | Per cylinder | Full single-cylinder set: head gasket, cover gasket, O-rings |
On the Jenbacher J420, the OE head gasket 448559 seals each cylinder, and the matching single-cylinder service set 582705 bundles the valve-cover gasket and O-rings the same job needs β ordering the set saves a second freight charge when a technician finds a flattened O-ring mid-rebuild.
Parts supplied by Hanchi Auto Parts are compatible with Baudouin, Weichai and Jenbacher engines; we are not affiliated with or endorsed by the OEM. All part numbers are quoted for cross-reference only.
How much does a genset head gasket repair cost?
The gasket itself is usually the smallest line on the invoice. On a 12-cylinder platform, most shops quote 16β24 labor hours for a full head gasket job, and the gasket set typically accounts for under 10% of the total bill once labor, machining, fluids and new head bolts are counted. The expensive mistake is doing the job twice.
Three cost traps show up repeatedly. First, reusing torque-to-yield head bolts: torque-to-yield bolts are single-use, as specified in the OEM service manual for your platform β a reused stretch bolt can lose up to 20β30% of its clamping force, and the saving on a set of bolts is trivial next to a second teardown. Second, skipping the surface check β a warped head that goes back on unmachined will take the new gasket out within weeks. Third, ignoring the root cause, which is why a new gasket fitted over an uncorrected overheating fault typically blows again within 500β1,000 operating hours.
For distributors and rebuilders buying in volume, a quality aftermarket gasket to the same dimensional specification typically costs 40β70% less than the OEM boxed part β but the saving only counts if the fire-ring design and coatings match the application. Verify against the OE number, not the catalog photo.
Frequently Asked Questions
Can I keep running my genset with a blown head gasket?
No. Combustion gas in the coolant creates steam pockets that trigger overheating shutdowns, and coolant in a cylinder can hydrolock the engine or wash the oil film off the liner. Stop the set, confirm the diagnosis, and repair before the next run β the damage multiplies with every hour of operation.
How long should a head gasket last on a gas genset?
At a typical standby duty of about 200 hours per year (ISO 8528 ESP), a head gasket may outlast the useful life of the set. At continuous duty above 6,000 hours per year, it becomes a scheduled overhaul item replaced at the top-end overhaul rather than on a calendar date. Follow the OEM hour-based schedule for your platform.
Does white smoke always mean a blown head gasket?
No. Cold-start condensation, a leaking injector and overfueling all produce white smoke. The giveaway for coolant is a sweet smell and smoke that continues at full operating temperature. Confirm with a combustion leak test before condemning the gasket.
Do I have to replace the head bolts when fitting a new gasket?
If the engine uses torque-to-yield (stretch) bolts, yes β they are designed for one use, two at most where the OEM allows. Measure bolt free length against the service limit if reuse is permitted. When in doubt, fit new bolts: they are cheap insurance on a multi-day job.
Can you supply head gaskets for engines not listed here?
Almost certainly. Send us the OE part number, your engine model (or a photo of the nameplate), and the quantity you need. We cross-reference the number, confirm fitment, and quote β the whole process takes about 30 seconds of your time on our contact page.
The bottom line on head gasket failure
Head gasket failure on a genset is a symptom, not a diagnosis. The seven root causes β overheating, coolant neglect, detonation, bolt errors, liner protrusion, surface finish and plain running hours β decide whether your new gasket lasts ten years or ten weeks. Fix the cause first. Then fit the gasket.
